9410 – 1 Part Epoxy, Electrically Conductive Adhesive, High Tg

Description

It is an electrical adhesive glue that is designed for semi-conductor flip chip packaging and die attach for small chips, LEDs and diodes. It provides excellent EMI/RFI shielding and is very effective in filling seams between metal plates. It can be readily used in manual, pneumatic, and robotic dispensing processes.

9410 is a silver filled epoxy adhesive that requires no mixing and is designed to simplify processing. It significantly eliminates waste and accelerates productivity while relieving concerns regarding mix ratios, weighing, and working times. It is stable at room temperature and does not require frozen storage.

We also offer 2-part heat-cured electrically conductive adhesives with 10-minute (8331), 20-minute (8331D), and 4-hour (8331S) working times, as well as thermally conductive alternatives.

Features & Benefits

• High electrical conductivity
• Creates strong permanent electrical connections
• No mixing required
• Cure time: 1 hour at 90 °C (194 °F) or 7 minutes at 150 °C (302 °F)
• Room temperature storage
• Suitable for automated dispensing

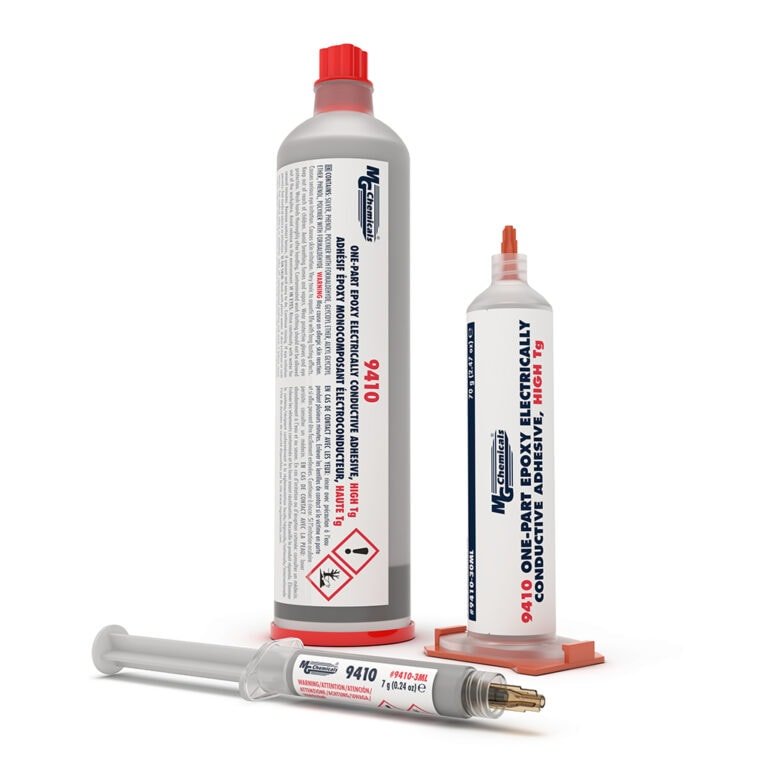

Available Sizes

Part #	Net Vol.	Net Wt.	Packaging	Unboxing
9410-3ML	3 mL	7 g	Syringe
9410-30ML	30 mL	70 g	Cartridge
9410-180ML	180 mL	420 g	Cartridge
